Sibo занимается потенциометрами и датчиками уже 30 лет.

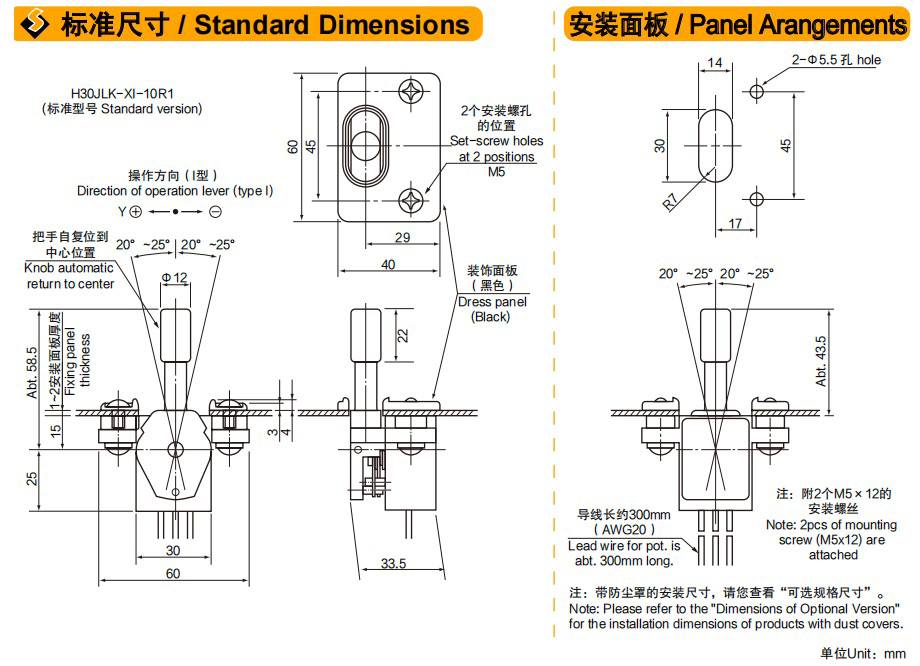

H30JLK
H30JLK

H30JLK

Magnetic-type Joysticks

瀏覽量： Вернуться: 2023-01-09

    Характеристики：

  • Hall effect joystick

  • 1-dimensional coordinate type joystick

  • Low-cost

Измерение


Параметр

General Mechanical Specifications

Controlling range of operating lever

1-dimensional coordinate type ±20°～±25° from center position.

Operating force

Standard spring return device : Automatically return to center, Approx.1～2.5N(100～250gf), (With rubber cover: Approx.1～5.5N(100～550gf))

Operating temperature range

-20℃～+60℃

Vibration

10～55Hz 98m/S2

Shock

294m/s2

Mechanical life expectancy

Approx.5,000,000 operations

Mass

Approx.100g

General Electrical Specifications

Type

Hall effect IC type resistive element incorporated

Applied voltage

5V±10% D.C.

Effective output

Approx. 0.5V～4.5V

Independent linearity tolerance

±3%

Load resistance

＞10KΩ

Dielectric strength

1 minute at 250V.A.C.

Insulation resistance

>100MΩ（250V.D.C.）

EMS durability

50V/m( 80MHz～1GHz 1KHz sine-wave 80%AM modulation)
