Sibo se ha enfocado en potenciómetros y sensores durante 30 años.

HSM30F
HSM30F

HSM30F

1-turn Contactless Magnetic POT.

瀏覽量: Tiempo: 2023-01-09

    Características:

  • Magnetic rotary sensor (Hall effect)

  • Single turn

  • Bushingmount&Flangemount

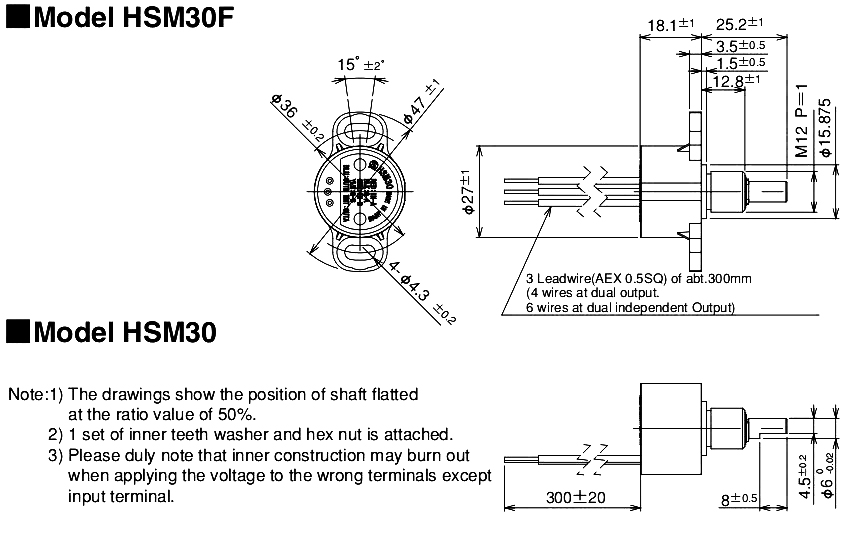

Dimensión


Parámetro

General Specifications

Current Consumption

Single output: Max. 16mA, Dual output: Max. 32mA

Independent Linearity Tolerance

±0.5%FS(FS=360°)

Mechanical Rotating Angle

360°(Endless)

Effective Electrical Angle

360°(Endless)

Applied Voltage

5V±10%D.C.

Load resistance

>10KΩ

Effective Output

10%±3%~90%±3% Vin

Output Temperature Characteristics

Within ±0.3%Vout/FS

Operating Temperature Range

- 40°C~+105°C

Storage Temperature Range

- 40°C~+105°C

Mass

Approx. 20g

Rotating Torque

<5mN·m(50gf·cm)

Environmental Specifications

Thermal Shock

5 cycles - 40°C~+105°C

Exposure at Low Temperature

24 hours at - 40°C

Exposure at High Temperature

1,000 hours at +105°C

Vibration

10~2000Hz 196m/s² 12 hours

Shock

980m/s2 6ms(18次)

Rotational Life Expectancy

Approx. 50,000,000

EMS Tolerance

100V/m(80MHz~1GHz 1kHz Sinwave80% Amplitude Modulation)

ESD Tolerance

±8kV contact discharge /±15kV aerial discharge (Based on IEC 61000-4-2)

Special Specifications Available

Special effective electrical angle

90°,180°,270°- arbitrary angles

Special shaft type

Special machining on the shaft

Special output

PWM, cross, parallel, dual independent output

Special applied voltage

12V,24V

Special mode

Low current consumption in slow mode
